Just got my switches wired up this is my first time doing this
so work with me, im running 4 switchs, front, Back, and rear corners.
1 dump to the front pump and 4 dumps to the ass.
Can someone tell me if this is the right way. :dunno:

:biggrin:



[THEBOXX]

i dont think its right bro...according to ur diagram u have 3 diff solinoids for the rear...all u need is one set for the front and one set for the rear....



[THEBOXX]

u also have to wire the other dumps on the rear to open as u raise the car up, so u can raise each corner up indepentally....



[Tuna_Sammich]

Originally posted by THEBOXX@Nov 28 2008, 11:10 AM~12280745
u also have to wire the other dumps on the rear to open as u raise the car up, so u can raise each corner up indepentally....

he has it all fucked up. to make that work, he has to have some dumps plumbed as blocker dumps. We did it last year on my friends caprice.

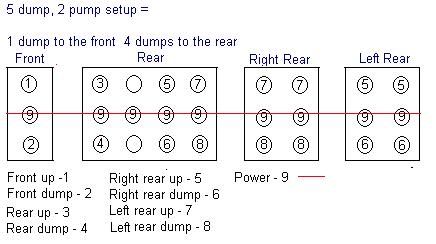

Something like this SHOULD work.



[83caddyhopper]

thanks, I knew someone would know. I didnt think it was right, but gave it a try lol.



[AndrewH]

you wire the blocker dumps to open when the pump activates. its the same as 3 pump wiring.
