[Lo_N_Lavish]

okay so my friend made this diagram for me because im gettin ready to bag my impala, i want to have 3 tanks and 4 compressors.
heres a pic of the diagram he gave me

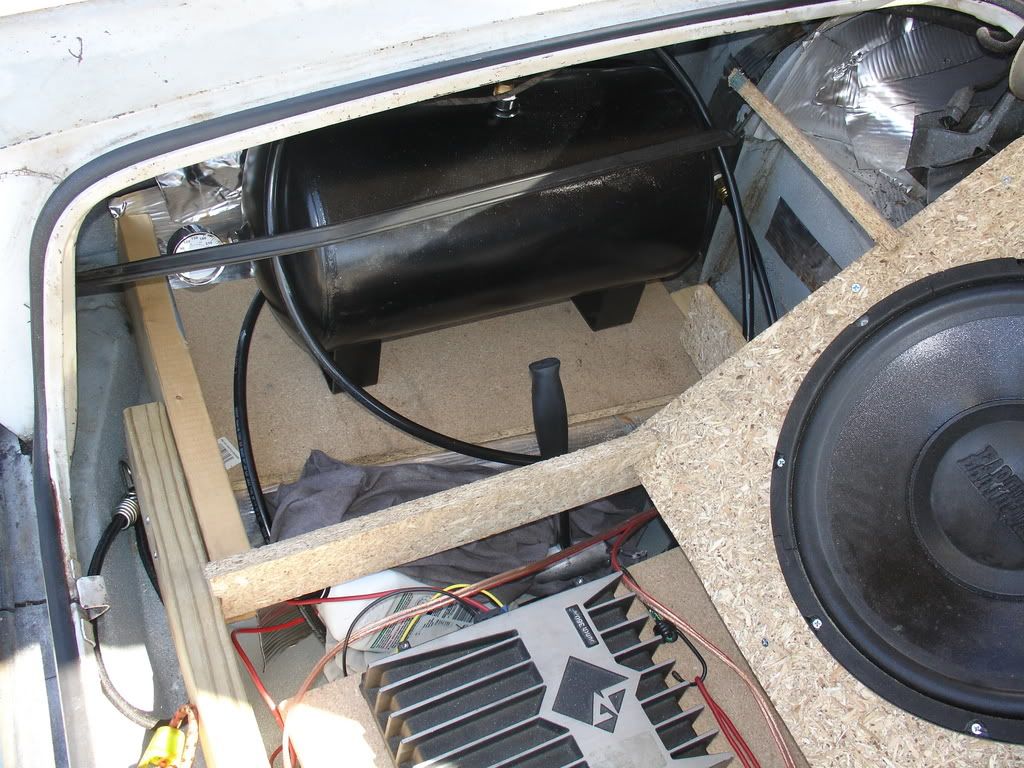

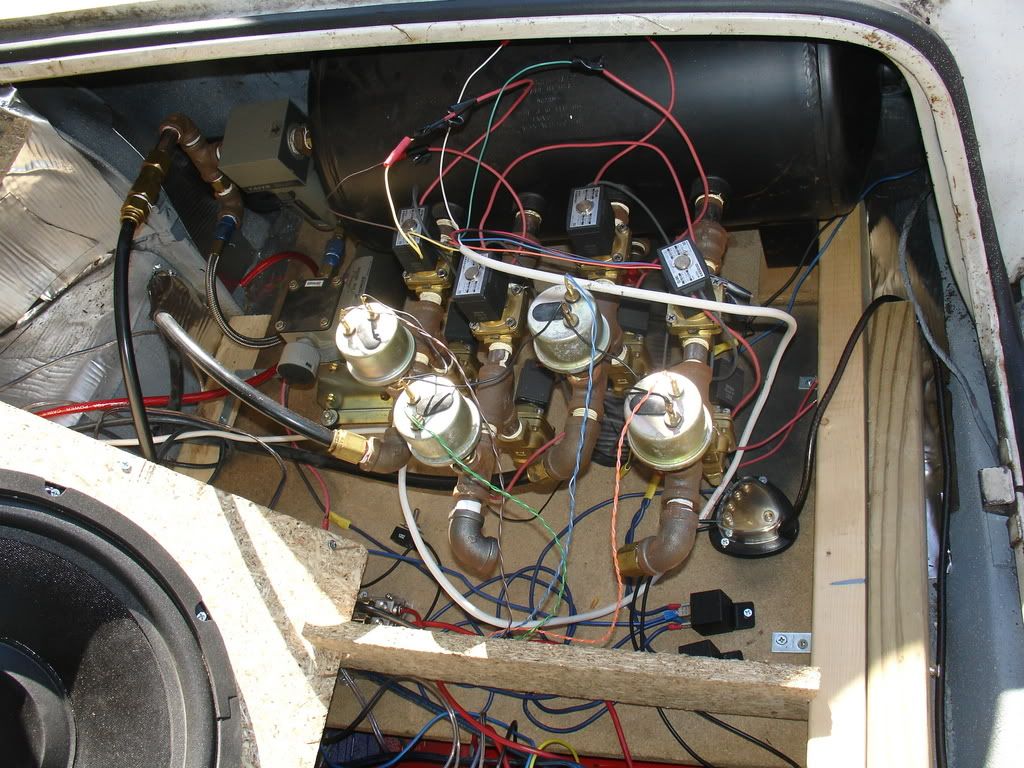

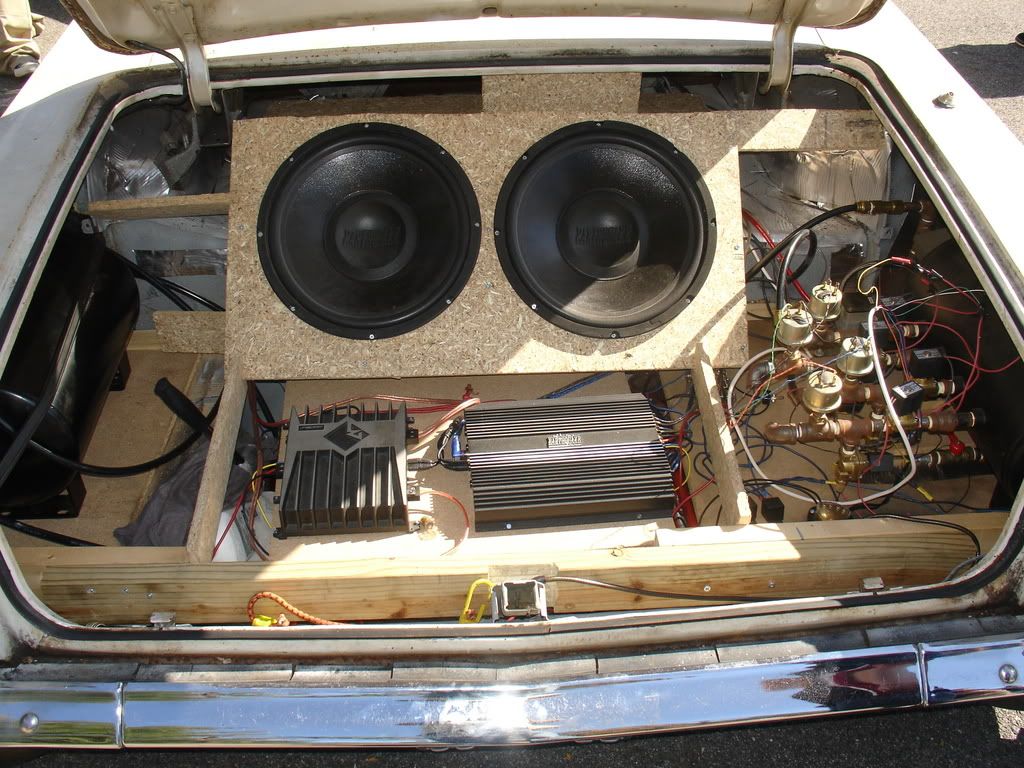

and heres some pics of his when it was first done, i know its all fuccin messy but you can get the idea of what is goin on :

ive never had an airbag setup before so im a lil ignorant as to how this shit works



[maddogg20/20]

I don't know about that oil return line coming off the engine-driven compressor.



[edflores]

why not just use a cross in between the valves instead of 2 tees? or buy the tee with the guage fiting that suicidedoors.com sells.



[Lo_N_Lavish]

thanks for the input, i dont really like the the engine compressor thing, but i dont know how to hook up the normal compressors .. can someone explain all this shit in plain english?



[416impala]

You are using the chassistech digital kit, Spray the actuall senders down with soapy water to verify they are not leaking. I have had a bunch of customers bring bring me parts that I refuse to install and that is 1 of them lol.

Yes ditch the black pipe fittings, we sell a brass fitting with a 1/8 port drilled/tapped into the side.



[Lo_N_Lavish]

thanks for the input everybody,
does anybody have a accurate diagram of what they think i should do,
i want to have 3 tanks and 4 compressors, thats all i care about. im just trying to gather ideas



[416impala]

Originally posted by Lo_N_Lavish@Oct 10 2007, 04:24 PM~8971228
thanks for the input everybody,
does anybody have a accurate diagram of what they think i should do,
i want to have 3 tanks and 4 compressors, thats all i care about. im just trying to gather ideas

All the same size tanks and pumps? I wont be in the shop untill monday, if you call me up then I can give you some tips on setting it up in your trunk.



[Lo_N_Lavish]

i was prolly gonna do a skinny behind the bumper, n two larger pumps n the trunk



[impala_631]

i dunno if my setup can help or give you ideas but i used to 9 gallon tanks that fit nice and snug, plumed the valve the same on each side with quick connect jic fittings and clips for the wireing, they are also labled so if a vavle ever goes bad i can take it out fast and have no trouble remembering the wireing, valves are grounded to themselves too

this was the mock up pic with the pressue switch and gauge sender, the other side has a plug and the air inlet with a water trap, i also put on adjutable air mufflers later

here it is all installed



[Lo_N_Lavish]

most def it helps,
that looks pretty good ill probably use 9 galons like u did, whered you buy all your parts?



[impala_631]

Originally posted by Lo_N_Lavish@Oct 11 2007, 04:05 PM~8978129
most def it helps,
that looks pretty good  ill probably use 9 galons like u did, whered you buy all your parts?

i got parts from acc, sd and aim, those tanks were off ebay threw aim for like 50bucks each, they are a tight squeeze but fit good and lots of air



[impala_631]

http://cgi.ebay.com/ebaymotors/9-GALLON-8-...sspagenameZWDVW



[Lo_N_Lavish]

cool thats what ill do, and paint em to match. has anybody tucked a tank under a car before? i know its probably been done a million times but im lookin to see pics n tips



[impala_631]

Originally posted by Lo_N_Lavish@Oct 13 2007, 11:33 PM~8995036
cool thats what ill do, and paint em to match. has anybody tucked a tank under a car before? i know its probably been done a million times but im lookin to see pics n tips

they do it on trucks ll the time, theres no room on impalas tho :cheesy:



[Lo_N_Lavish]

where you think i could hide a 3rd tank, im thinkin a 5 gal skinny



[Cirilian]

Besides the obvious cosmetic issues what are the draw backs to using black pipe fittings?



[maddogg20/20]

Originally posted by Cirilian@Oct 18 2007, 11:16 PM~9036056
Besides the obvious cosmetic issues what are the draw backs to using black pipe fittings?

Moisture causes them to rust inside, & low psi ratings.



[Cirilian]

I can see the rust issues but really if you have a system with water traps, like your supposed to, then how much of an issue is it really. As far as the psi ratings, they're rated to 150 psi just like our tanks?
